How to highlight a data point

One of the informative methods is highlighting specific data points:

The main idea of how to show this data in different colors is to create separate data series for different colors.

To create a chart like one above, follow the next steps:

   1.   Split your data by color:

• In red will be shown the minimum value:

  = IF (cell = MIN (<data range>), cell, 0)

• In green will be shown the maximum value:

  = IF (cell = MAX (<data range>), cell, 0)

• In grey will be shown all the other values.

For example (here <data range> = $C$3:$C$6):

   2.   Select the data cells (in this example, B3:B6, E3:G6).

   3.   On the Insert tab, in the Charts group, choose the Column button:

Choose the Stacked Column chart.

Make any other adjustments to get the look you need.

To add data label for just one data point, do the following:

   1.   Right-click on any data series (in this example, the maximum value) and choose Add Data Labels -> Add Data Labels in the popup menu:

   2.   Right-click on the added data labels and choose Format Data Labels... in the popup menu:

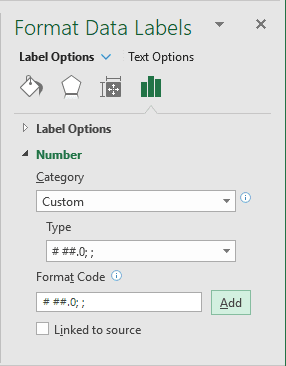

   3.   On the Format Data Labels pane, in the Label Options tab, in the Numbers group:

• In the Category drop-down list, select Custom,
• In the Format Code field, type the new format for labels:

  <format for the positive value>; <format for the negative value>; <format for the zero>:



  To skip the negative values and zero, just leave them empty.

• Click Add.
