How to create interactive chart with checkboxes in Excel

Like any other form control, each Check Box needs a target cell on the worksheet that stores the value of that control - TRUE if the checkbox is selected and FALSE for the empty one. See other techniques for creating interactive charts.

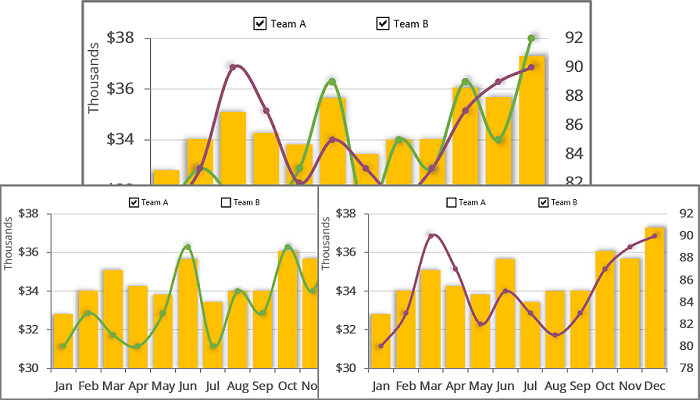

To create an interactive chart with checkboxes, do the following:

   1.   Prepare the data that will be shown in the chart

Add additional data to your spreadsheet for checkbox values:

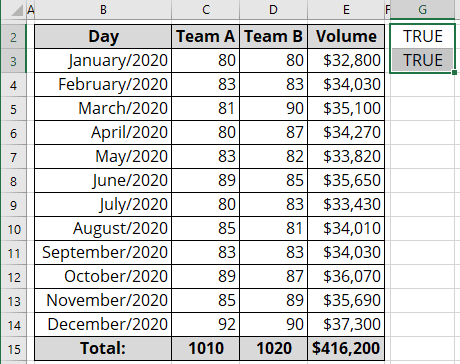

For example, enter in the cells G2 and G3 the values TRUE :

   2.   Define names

Create data ranges, which will be used for the interactive chart, on the Formulas tab, in the Defined Names group, click Define Name (see Creating and using named ranges for more details):

   2.1.   Define whether to display the first data series:

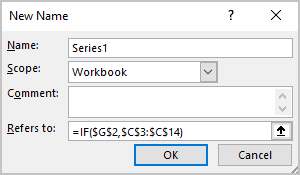

In the New Name dialog box:

• In the Name field, enter the name of this new range, for example, Series1,
• In the Refers to field, enter this formula:

= IF (<condition>, <series data>),

where the <condition> is the option to show this data series.

   2.2.   Add the new data range for the other series.

In this example:

• Name: Series2,
• Refers to: = IF ($G$3, $D$3:$D$14).

   3.   Create a chart that includes all data series

See how to create a combination chart for more details.

   4.   Change the data series

   4.1.   Do one of the following:

• On the Chart Design tab, in the Data group, choose Select Data:

• Right-click on the chart area and choose Select Data... in the popup menu:

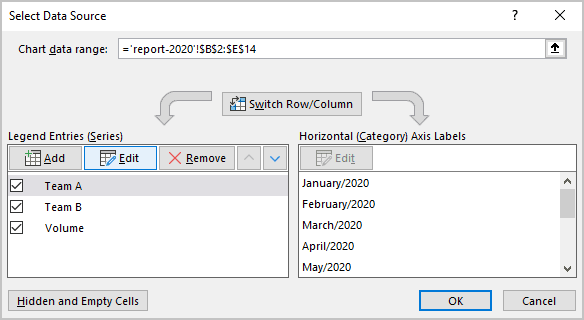

   4.2.   On the Select Data Source dialog box, for the Legend Entries (Series), select the first data series that you would like to hide and show using the checkboxes and click the Edit button:

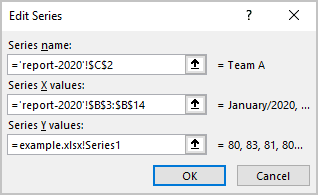

   4.3.   In the Edit Series dialog box, change Series Y values (or Series values) to the appropriate names:

   4.4.   Repeat the previous steps for all other data series you will show and hide using the checkboxes.

   5.   Add the checkboxes to the chart

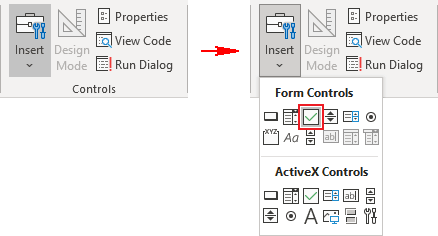

   5.1.   On the Developer tab (see Show the Developer tab), in the Controls group, click the Insert dropdown list and then choose Check Box (Form Controls):

Note: You can also add to the Quick Access Toolbar (see how to add commands to the Quick Access Toolbar):

• The entire Insert controls dropdown list,
• The Check Box control.

Add as many checkboxes as the data series will be selected, and place them where you want.

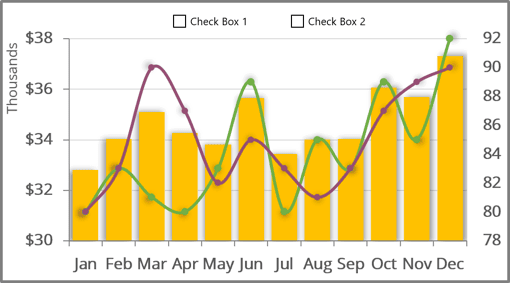

In this example, just two checkboxes were used:

   5.2.   Format checkboxes:

   5.2.1.   Double-click on every checkbox and change the label.

   5.2.2.   Right-click on each checkbox and choose Format Control... in the popup menu:

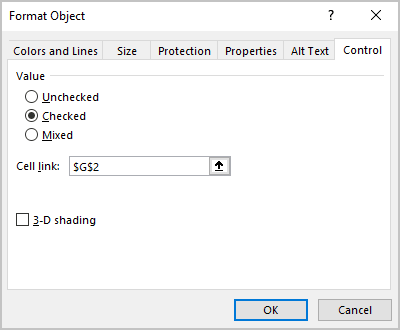

   5.2.3.   In the Format Control dialog box, on the Control tab, choose the appropriate cell in the Cell link field (in this example, G2):

   5.2.4.   Format other checkboxes (in this example, for cell G3).

Make any other adjustments to get the look you desire.

Note: Excel will use the colors from the theme by default to show the data series. To use your colors for checked data series, create a new theme with custom colors. For example:

See how to change the default colors that Excel uses for chart series for more details.
