Simple combination chart

Not all the available chart types in Excel can be displayed on a single combo chart. For example, you cannot use bar and column data series in the same chart or combine a pie chart with any other type than a donut.

For example, you can have two different volumes (e.g., the Volume of sales and the product Price), and you want to see them in one chart:

To create one chart for this data, follow these steps:

   1.   Select the data range (in this example, cells B3:E13).

   2.   On the Insert tab, in the Charts group, click the Insert Combo Chart button:

From the Insert Combo Chart list, choose Clustered Column - Line in Secondary Axis:

   3.   Modify this chart.

Notes:

1. If you prefer to use another chart type instead of the one proposed by Excel, do the following:
   • Select the data series your want to change.
   • Right-click the selection and choose Change Series Chart Type... in the popup menu:

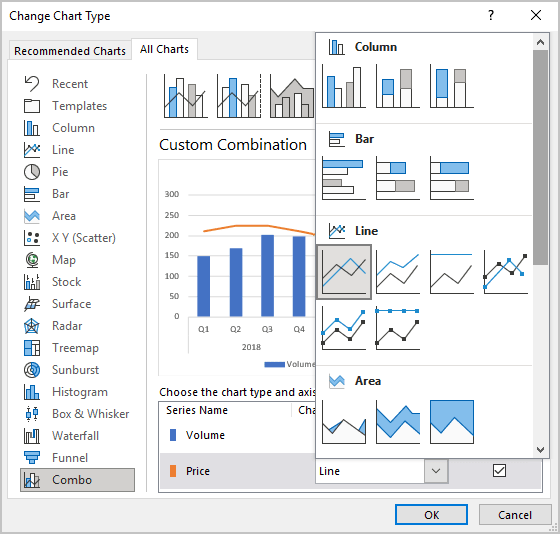

   • In the Change Chart Type dialog box, select the appropriate chart type for the data series:

2. To add the next data series with another axis, see Combining several charts into one chart.

See also this tip in French: Comment créer le graphique de combinaison simple.
