How to make modern picture design in PowerPoint slide

See also How to create simple picture designs for PowerPoint slides.

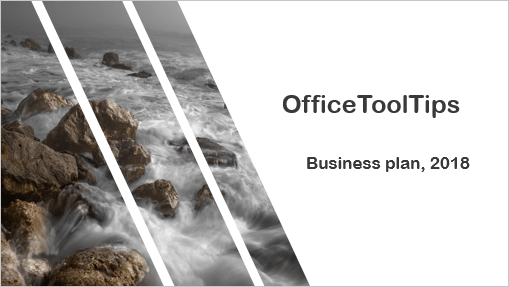

To create several shapes with one background picture like shown above, do the following:

   1.   Create shapes for your picture:

   1.1.   To create the left shape, you can add two shapes in the slide – rectangle, and triangle:

   1.1.1.   On the Insert tab, in the Illustrations group, select Shapes:

   1.1.2.   In the Shapes list, from the Rectangles group, select and add to the slide the Rectangle shape:

   1.1.3.   In the Shapes list, from the Basic Shapes group, select and add to the slide the Right Triangle shape:

   1.2.   To create the central or right shape, you can add parallelogram shape and then flip it vertically:

   1.2.1.   In the Shapes list, from the Basic Shapes group, select and add to the slide the Parallelogram shape:

   1.2.2.   To flip the selected shape, do one of the following:

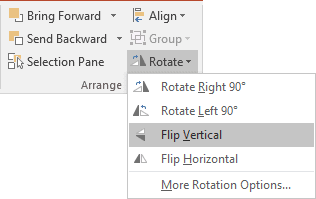

• On the Home tab, in the Drawing group, select the Arrange drop-down list:


  Choose the Rotate list and then click Flip Vertical:

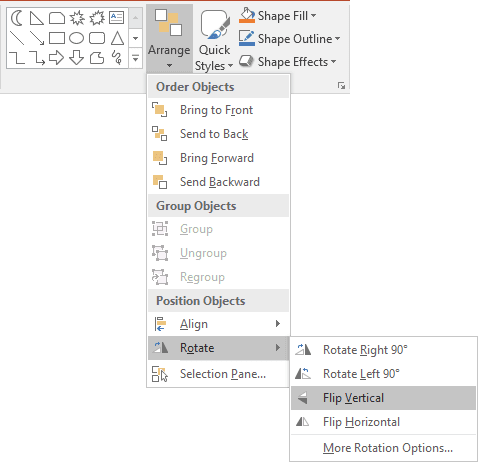

• Under Drawing Tools, on the Format tab, in the Arrange group, choose the Rotate dropdown list, and then click Flip Vertical:


After flipping the shapes, modify them like you want:

   2.   To show one picture through all these shapes, just group them:

   2.1.   To group several objects, select them by pressing Ctrl or Shift and clicking each of these objects.

   2.2.   Do one of the following:

• On the Home tab, in the Drawing group, select the Arrange drop-down list, and then click the Group command:

• Under Drawing Tools, on the Format tab, in the Arrange group, click the Group command:

• Right-click one of the objects and choose Group -> Group from the popup menu:


PowerPoint puts a single box around the objects instead of a separate box around each object:

   3.   Right-click on the grouped shapes and then choose Format Shape... in the popup menu:

   4.   On the Format Shape pane, on the Shape Options tab, in the Fill & Line group:

• In the Fill section:
  • Choose Picture or texture fill,
  • Click on the File... button and then choose the picture you prefer:

• In the Line section, select No line:


Add any other adjustments you would like.

See also this tip in French: Comment faire de la conception d'image moderne dans la diapositive PowerPoint.
